SP 46-2BB [15A219D2]
SP 46-2BB [15A219D2]
Verfügbarkeit für Abholungen konnte nicht geladen werden

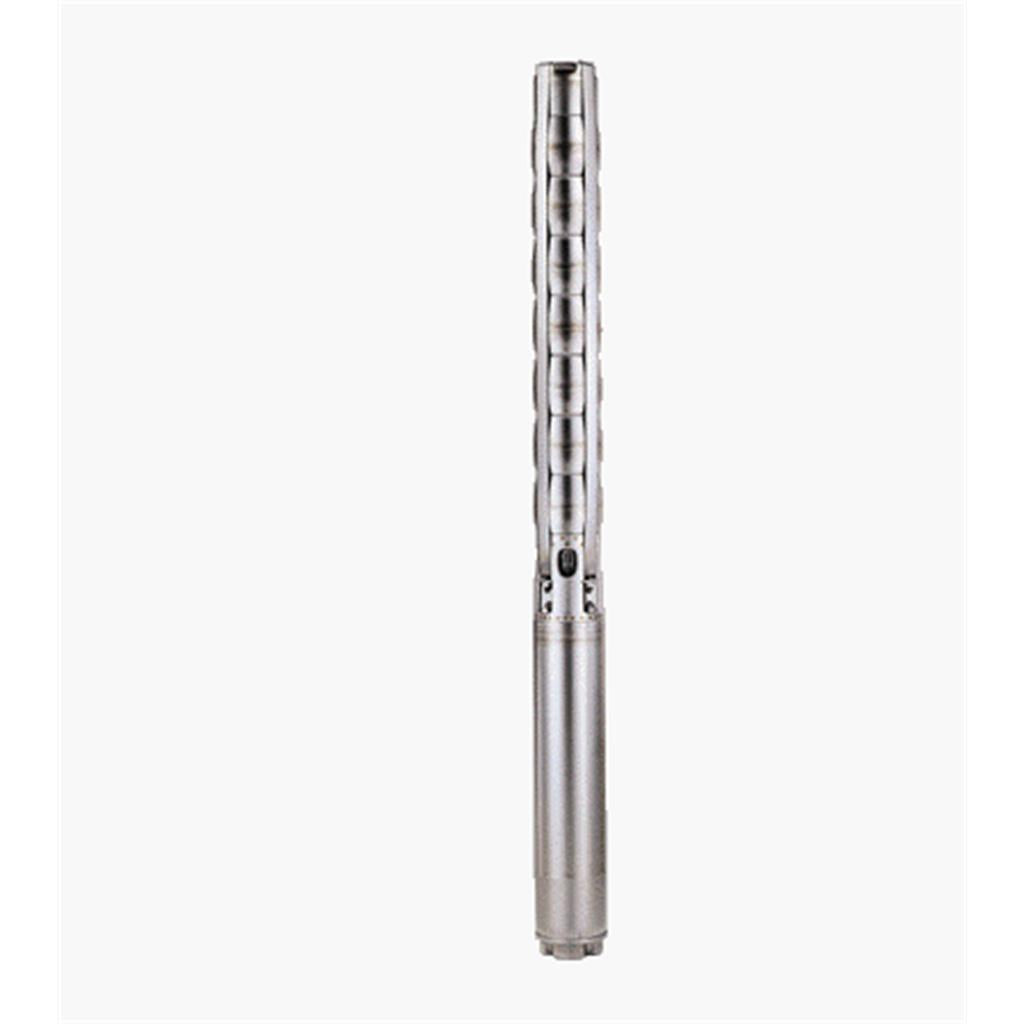

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The pump is fitted with a 2.2 kW MS402 motor with sand shield, lip seal, water-lubricated journal bearings and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stability and high efficiency. Suitable for temperatures up to 40 °C. The motor is not fitted with a temperature sensor. If temperature monitoring is desired, a Pt1000 sensor can be fitted. The motor is for direct-on-line starting (DOL).
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

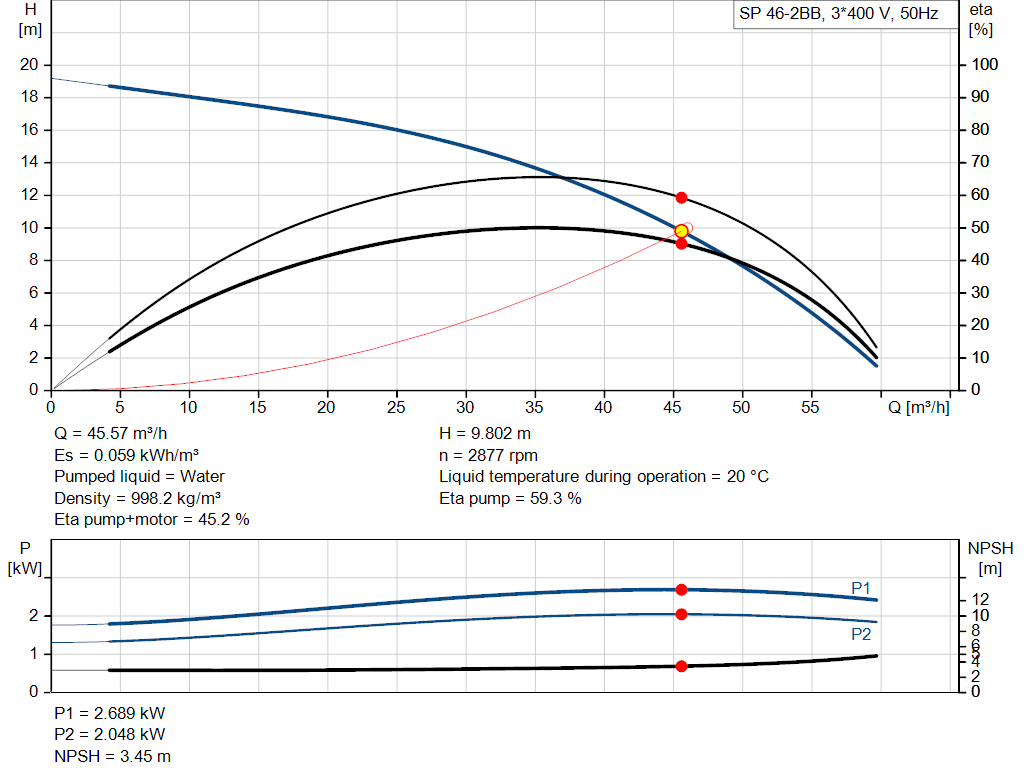

| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 46 m³/h |
| Rated head: | 10 m |
| Shaft seal for motor: | LIPSEAL |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |

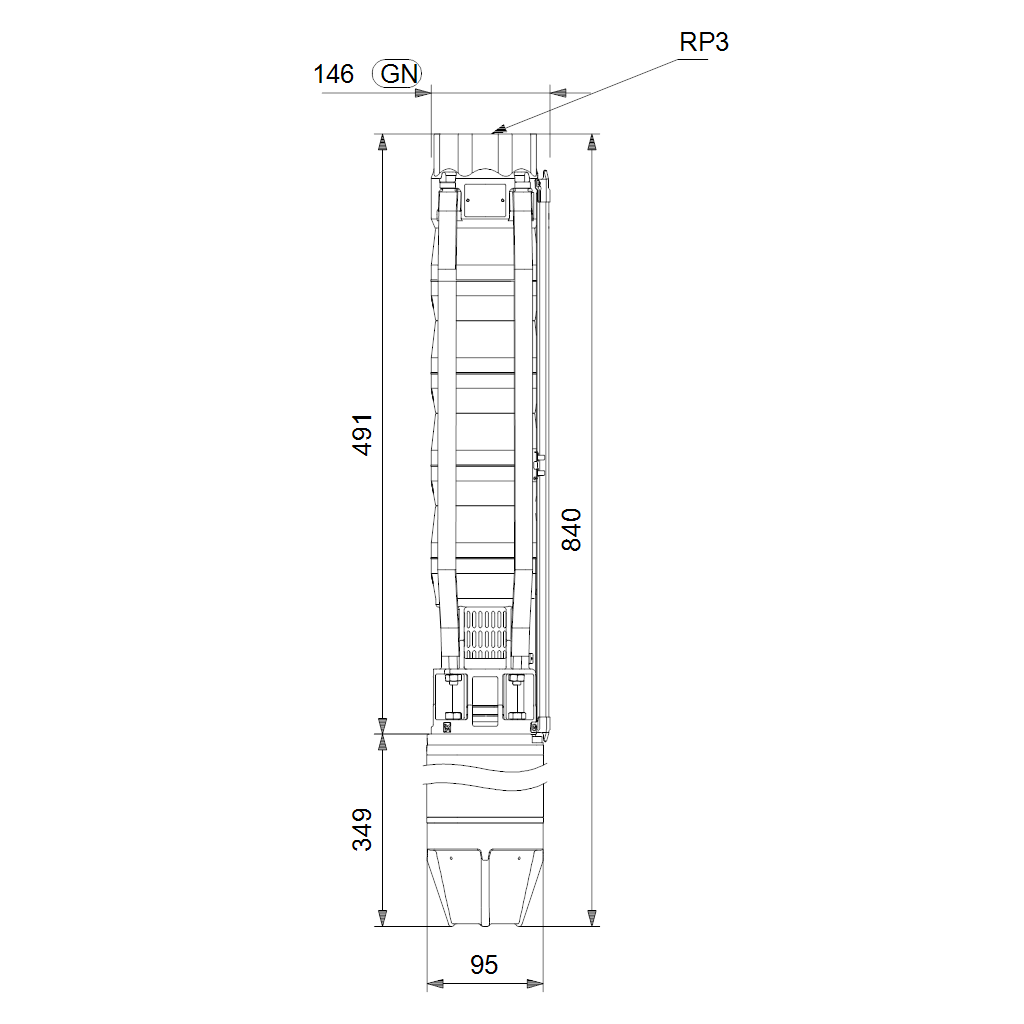

| Installation: | |
| Maximum ambient pressure: | 15 bar |
| Maximum operating pressure: | 15 bar |
| Maximum outlet pressure: | 2 bar |
| Type of connection: | Rp |
| Size of connection: | 3 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 150 mm |

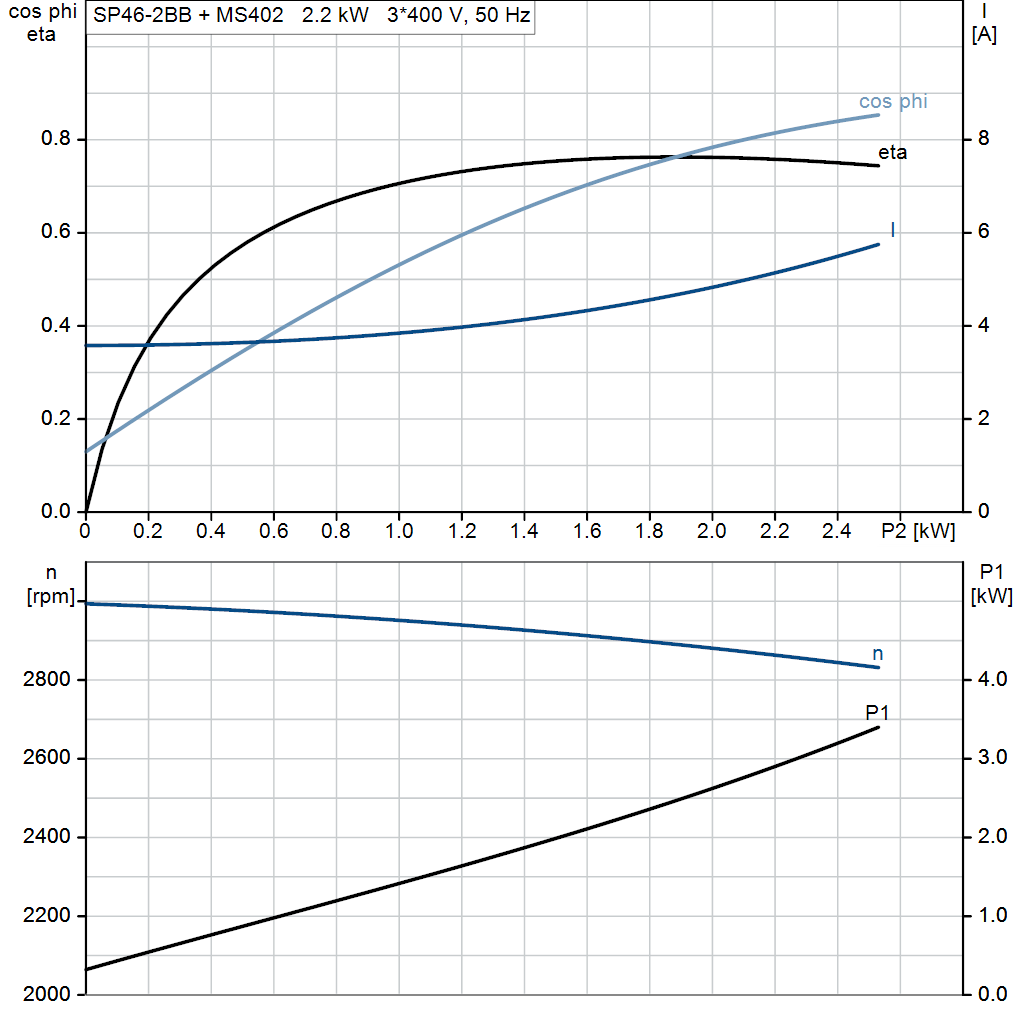

| Electrical data: | |
| Motor type: | MS402 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 2.2 kW |
| Power (P2) required by pump: | 2.2 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 5.50-5.50-5.70 A |
| Starting current: | 440-460-470 % |
| Cos phi - power factor: | 0.85-0.82-0.77 |
| Rated speed: | 2850-2860-2870 rpm |

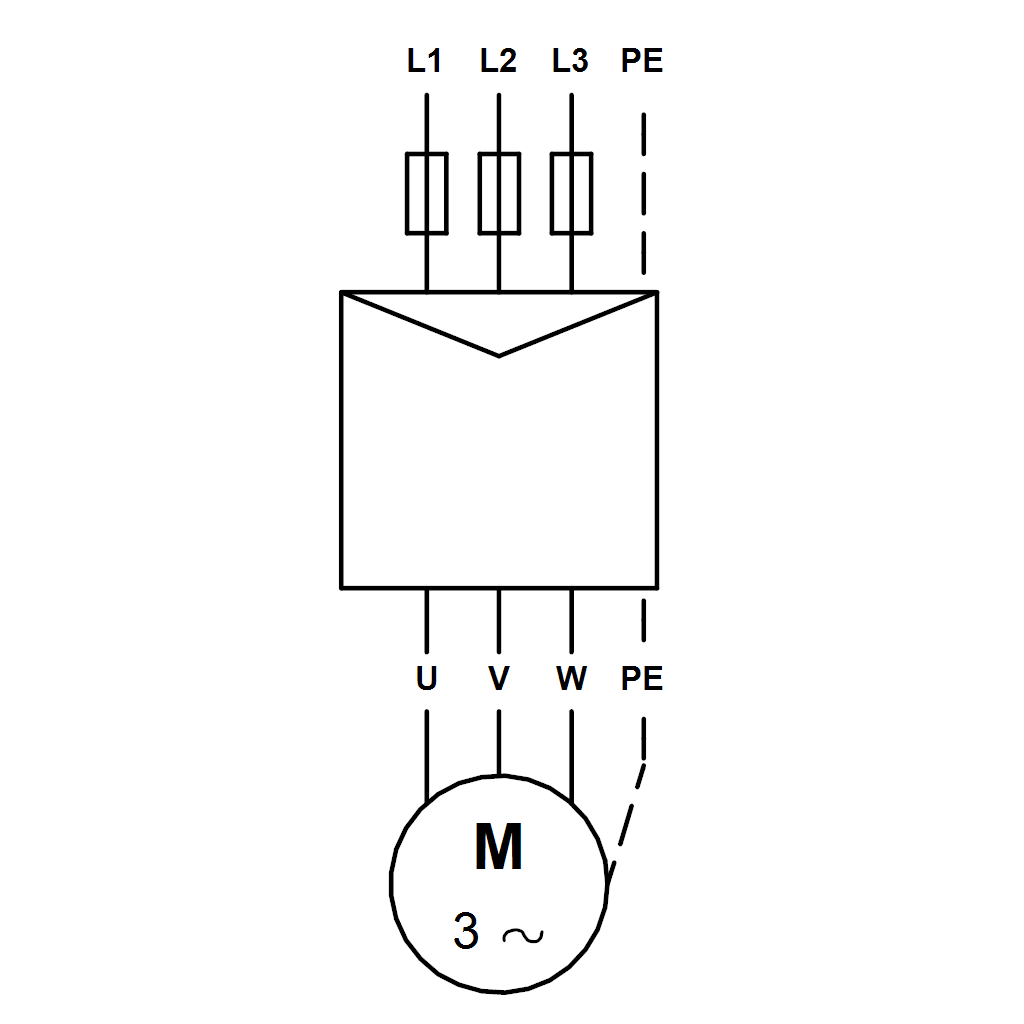

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | B |
| Built-in temp. transmitter: | no |
| Length of cable: | 1.7 m |
| Power cable type: | FLAT |
| Motor No: | 79192007 |
| Windings: | Enamelled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.40 |
| Net weight: | 21.9 kg |
| Gross weight: | 24.5 kg |
| Shipping volume: | 0.032 m³ |
| Danish VVS No.: | 388463202 |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
