CM 15-2 A-R-G-E-AQQE F-A-A-N [99083481]
CM 15-2 A-R-G-E-AQQE F-A-A-N [99083481]
Grundfos
Normale prijs
€2.229,09 EUR
Normale prijs
€3.327,00 EUR
Aanbiedingsprijs
€2.229,09 EUR
Eenheidsprijs
/
per
Prijs exclusief BTW.
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden

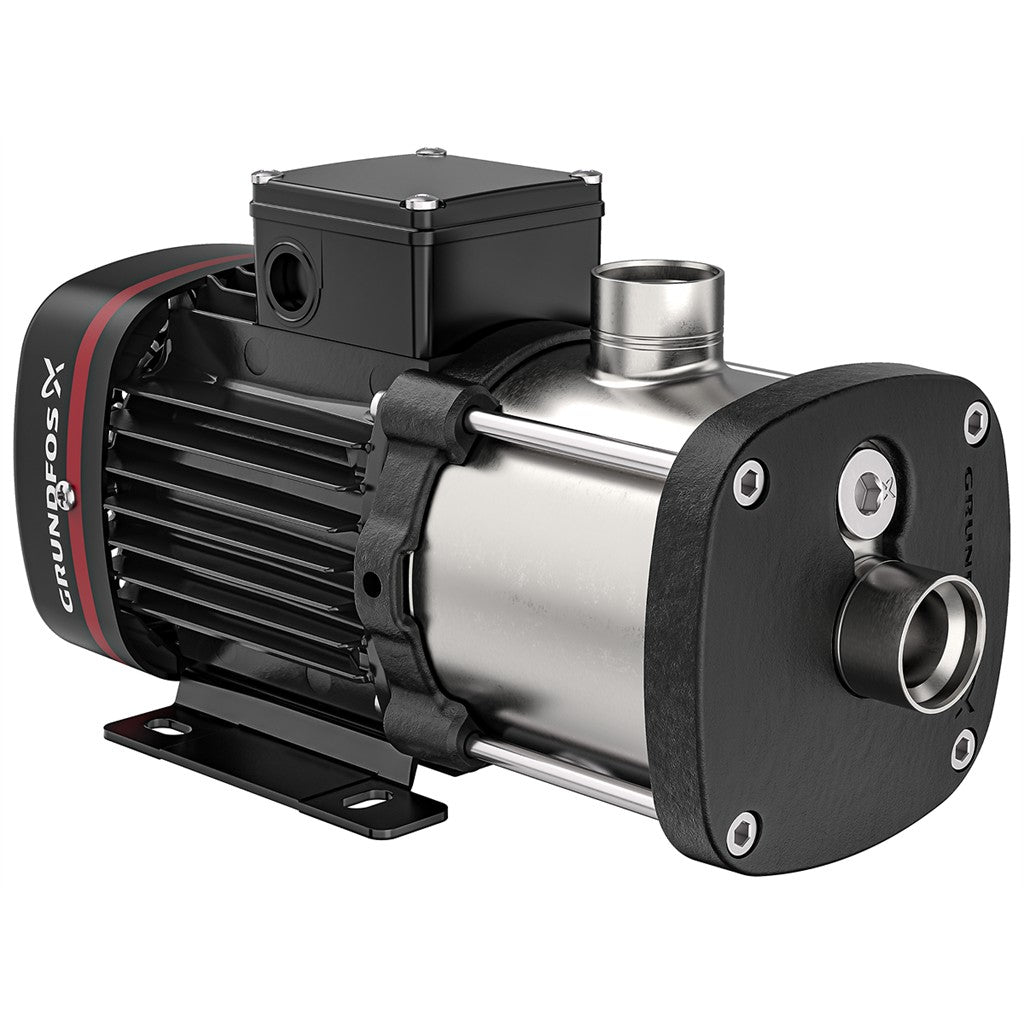

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
Specs Table
| Regeling: | |
| Frequency converter: | NONE |
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

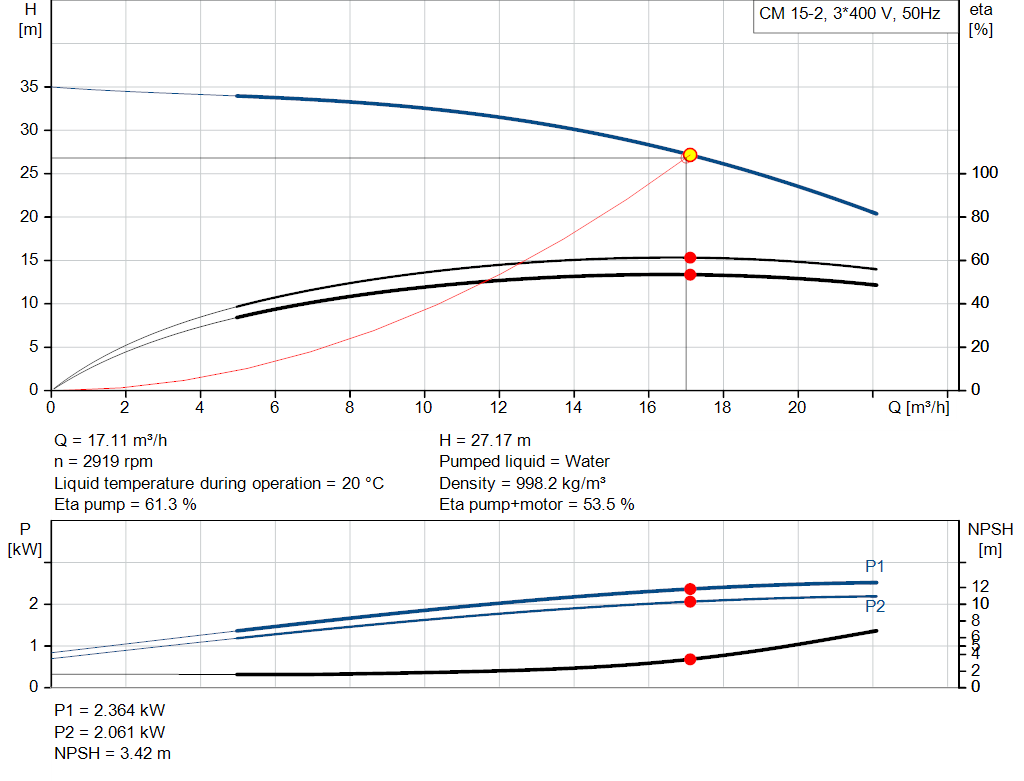

| Pompsnelheid waarop pompgegevens zijn gebaseerd: | 2900 omw/min |
| Nominaal debiet: | 17 m³/u |
| Nominale opvoerhoogte: | 26.82 m |
| Primaire asafdichting: | AQQE |
| Code voor asafdichting: | AQQE |
| Goedkeuringen: | CE,CCC,CEL,EAC,UKCA |
| Drinkwater keurmerk: | WRAS,ACS,NSF61,UBA |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| Pomp behuizing: | EN 1.4401 |
| Pomphuis: | AISI 316 |
| Waaier: | Roestvast staal |
| EN 1.4401 | |
| AISI 316 | |
| Installatie: | |
| Bereik van omgevingstemperatuur: | -20 .. 55 °C |
| Maximale bedrijfsdruk: | 16 bar |
| Max. druk bij toegestane temp: | 16 bar / 90 °C |
| 10 bar / 120 °C | |
| Type aansluiting: | Rp |
| Maat van de zuigaansluiting: | 2 inch |
| Maat van de persaansluiting: | 2 inch |
| Positie perszijde: | 12 |

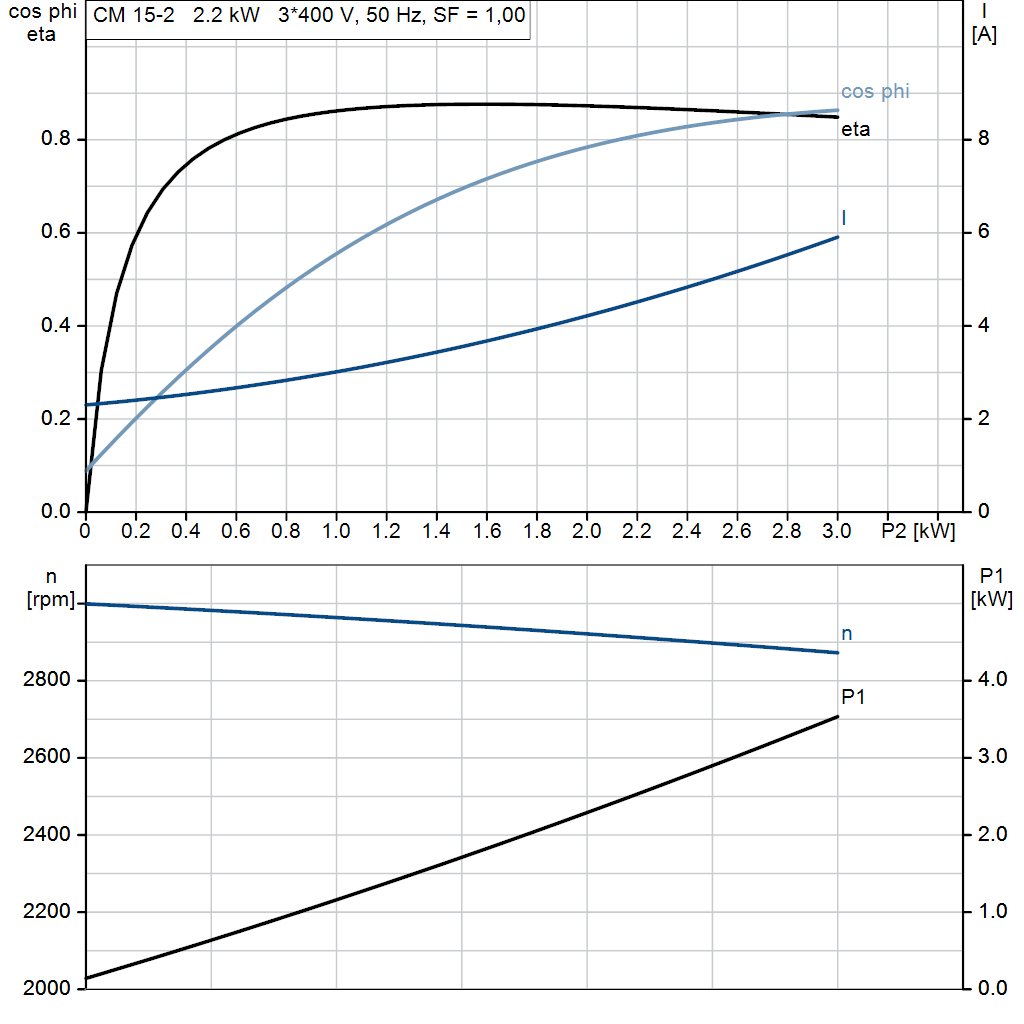

| Elektrische gegevens: | |
| Motor standaard: | IEC |
| Afmetingen frame: | 90LE |
| IE rendementsklasse: | IE3 |
| Nominaal vermogen - P2: | 2.2 kW |
| Netfrequentie: | 50 Hz |
| Geschikt voor 50/60 Hz: | N |
| Nominale spanning: | 3 x 220-240D/380-415Y V |
| Service factor: | 1.00 |
| Nominale stroom: | 8.00/4.60 A |
| Startstroom: | 840-920 % |
| Nominale snelheid: | 2890-2910 omw/min |
| Dichtheidsklasse (IEC 34-5): | IP55 |
| Isolatie klasse (IEC 85): | F |
| Ex-beveiligingsrichtlijn: | GEEN |
| Kabel inbegrepen (ja/nee): | N |
| Overige: | |
| Positie Klemmenkast: | 12 |
| Minimale Efficiëntie Index, MEI ≥: | 0.59 |
| Netto gewicht: | 29.3 kg |
| Bruto gewicht: | 31.8 kg |
