MS4000 [92960237]
MS4000 [92960237]
Grundfos
Normale prijs
€4.000,00 EUR
Normale prijs
€5.000,00 EUR
Aanbiedingsprijs
€4.000,00 EUR
Eenheidsprijs
/
per
Prijs exclusief BTW.
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden

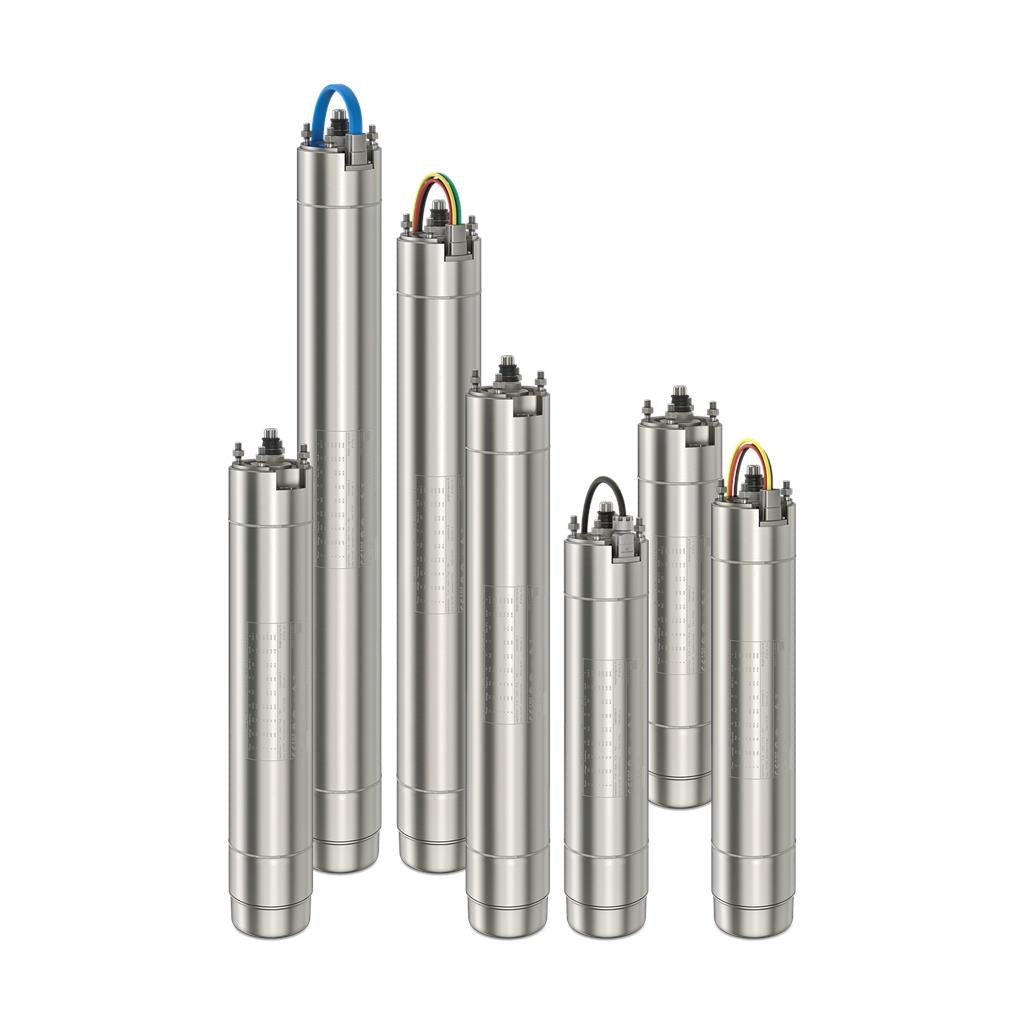

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS |
| Model: | C |
| Motor version: | T40 |
| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Shaft seal: | SiC/SiC |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |
| Rated power - P2: | 7.5 kW |
| KVA code: | J |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 440-460 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.15 |
| Rated current: | 16-16.9 A |
| Maximum current consumption - service factor: | 18.0-18.6 A |
| Starting current: | 570-580 % |
| Cos phi - power factor: | 0.79-0.74 |
| Rated speed: | 3440-3460 rpm |
| Speed - service factor: | 3430-3450 rpm |
| Rated full-load torque: | 21 Nm |
| Locked-rotor torque: | 210-240 % |
| Breakdown torque: | 58.8-65.0 Nm |
| Moment of Inertia: | 0.0036 kg m² |
| Maximum axial load: | 450 kg |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Winding resistance: | 2.350 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 31.5 kg |
| Gross weight: | 33.5 kg |
| Shipping volume: | 0.265 m³ |
