Grundfos
Normale prijs
€3.206,40 EUR
Normale prijs
€4.008,00 EUR
Aanbiedingsprijs
€3.206,40 EUR
Eenheidsprijs
/
per
Prijs exclusief BTW.
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden

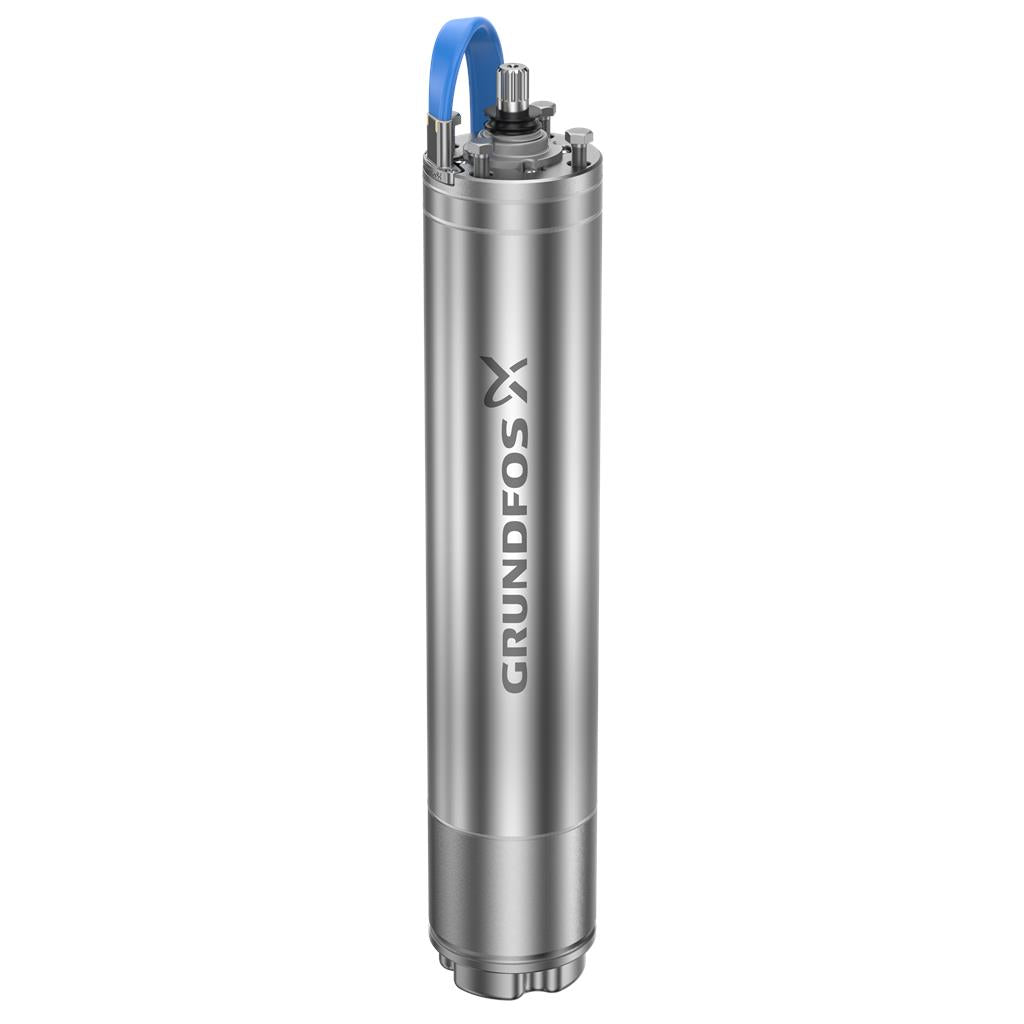

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
|
| Max liquid t at 0.15 m/sec: | 40 °C |
|
| Shaft seal for motor: | CER/CARNBR |
| CE approved (Yes/No): | Y |
| Motor version: | T40 |
|
| Motor: | Stainless steel |
| | DIN W.-Nr. 1.4301 |
| | AISI 304 |
|
| Maximum ambient pressure: | 60 bar |
| Motor diameter: | 6 inch |
|
| Motor type: | MS6000 |
| Rated power - P2: | 7.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 17.8-17.2-17.2 A |
| Starting current: | 460-510-530 % |
| Cos phi - power factor: | 0.84-0.82-0.79 |
| Rated speed: | 2850-2870-2880 rpm |
| Rated full-load torque: | 25 Nm |
| Locked-rotor torque: | 140-160-180 % |
| Breakdown torque: | 230-260-280 % |
| Moment of inertia: | 0.0044 kg m² |
| Axial load max: | 7.5 kN |

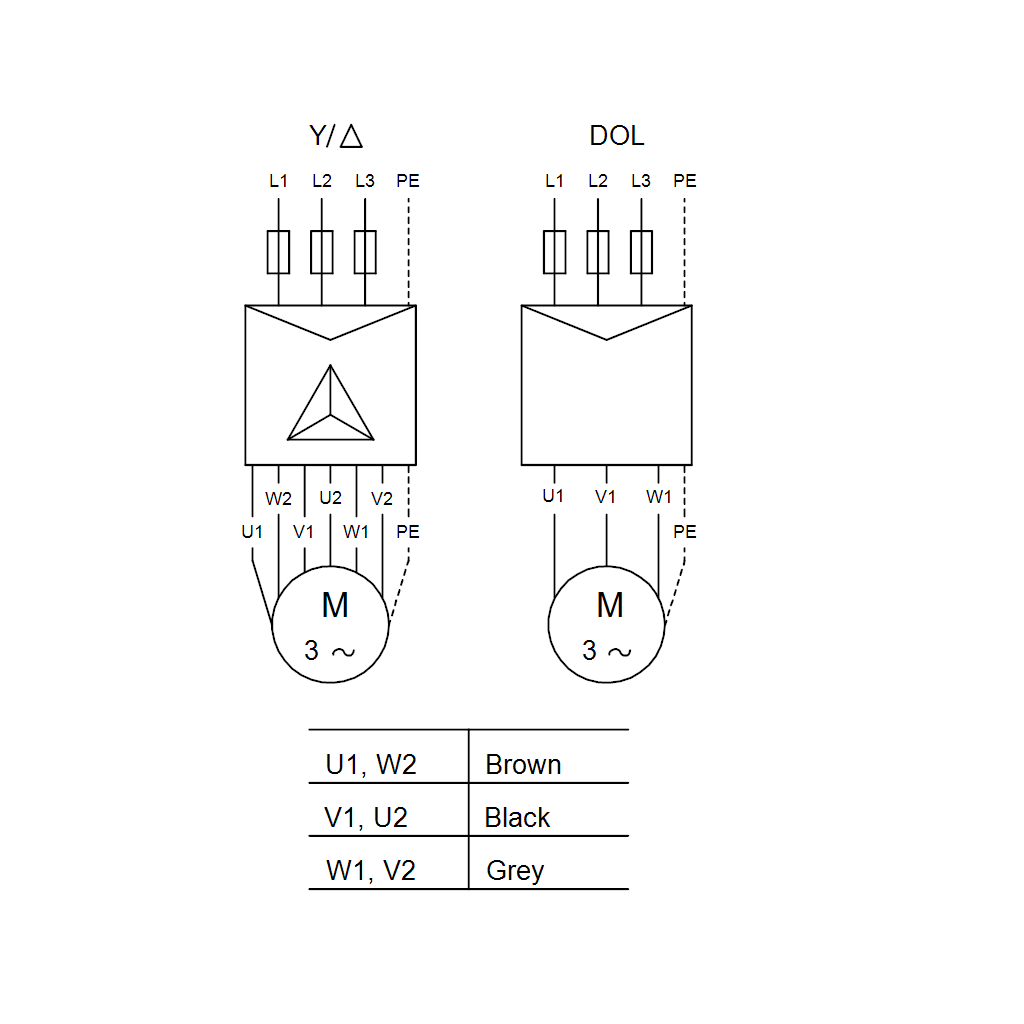

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Winding resistance: | 1.833 Ohm |
| Windings: | Enamelled |
|
| Net weight: | 37 kg |
Alle details bekijken
