NK 125-250/249 AY1F2AESBAQEXW3 [96777608]
NK 125-250/249 AY1F2AESBAQEXW3 [96777608]
Grundfos
Normale prijs
€4.219,20 EUR
Normale prijs
€5.274,00 EUR
Aanbiedingsprijs
€4.219,20 EUR
Eenheidsprijs
/
per
Prijs exclusief BTW.
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden

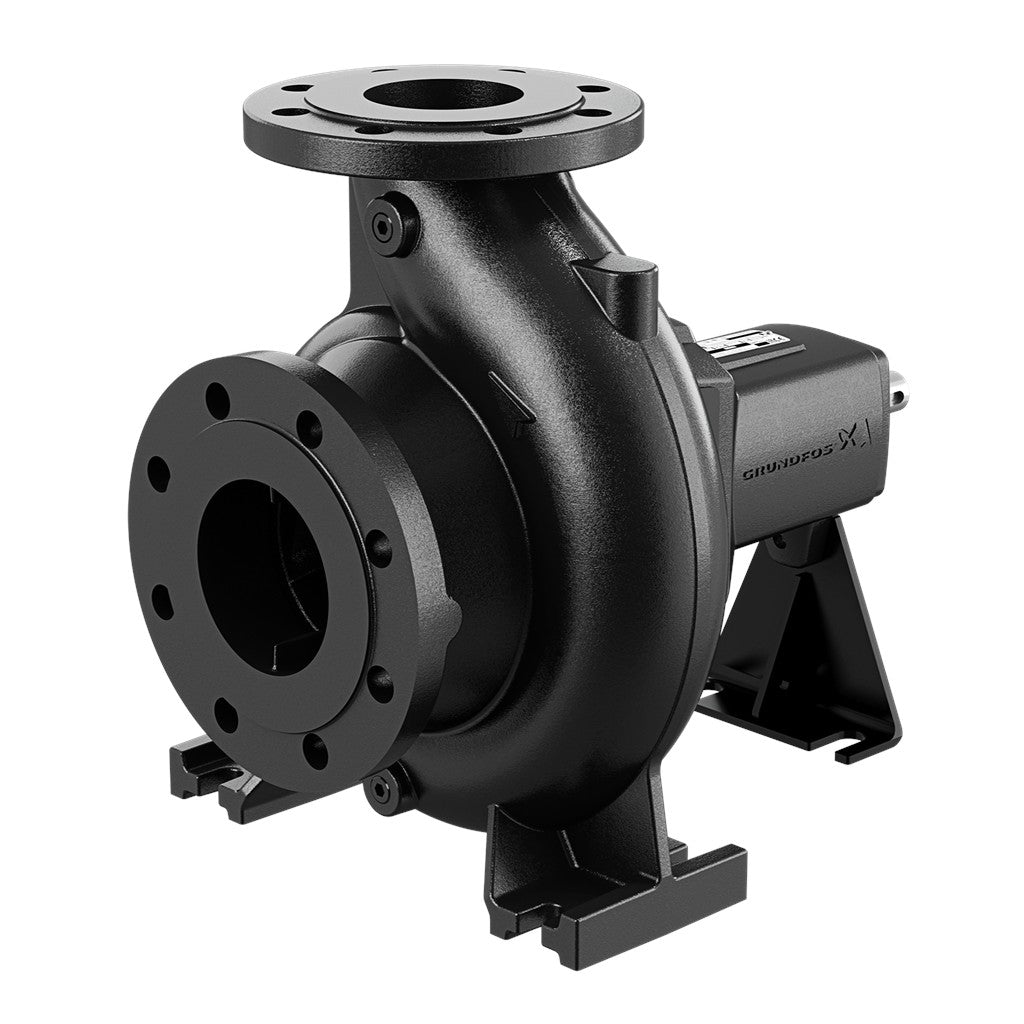

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the motor, coupling, bearing bracket and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

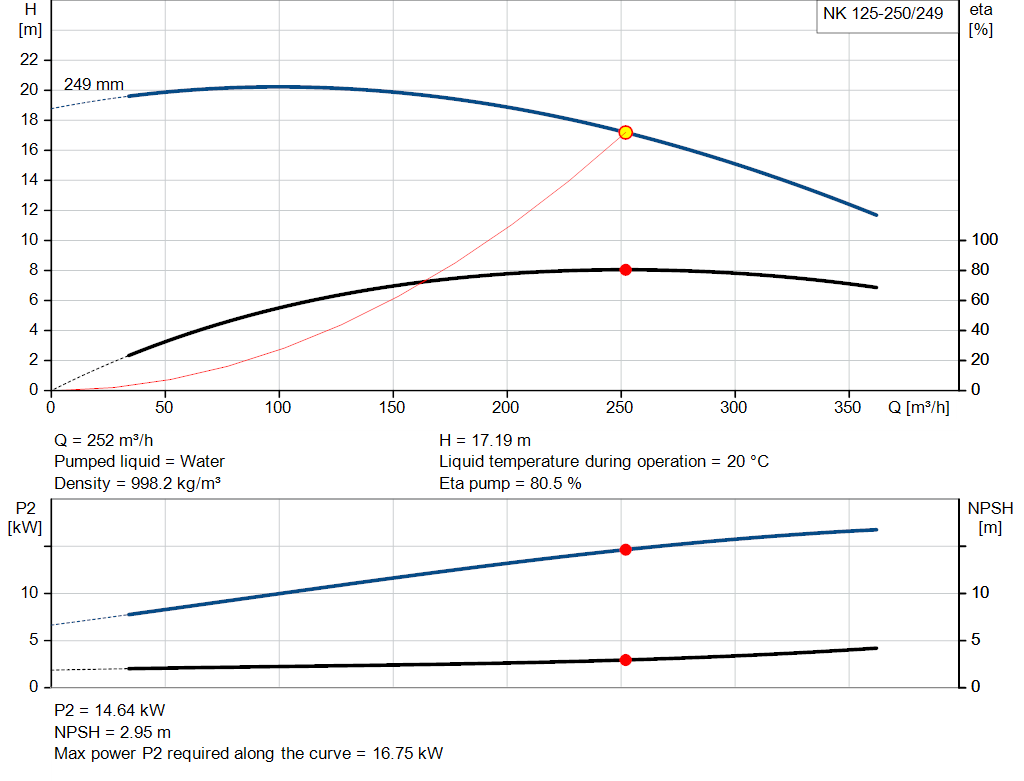

| Technical: | |
| Pump speed on which pump data are based: | 1450 rpm |
| Rated flow: | 252 m³/h |
| Pump with motor (Yes/No): | N |
| Rated head: | 17.2 m |
| Actual impeller diameter: | 249 mm |
| Nominal impeller diameter: | 250 |
| Primary shaft seal: | BAQE |
| Code for shaft seal: | BAQE |
| Mechanical seal type: | Single |
| Curve tolerance: | ISO9906:2012 3B |
| Bearing design: | Standard |
| Min. pump speed: | 500 rpm |
| Max. pump speed: | 3700 rpm |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM class 35 | |
| Wear ring: | Brass |
| CuZn34Mn3AI2Fe1-C | |
| Impeller: | Cast iron |
| EN-GJL-200 | |
| ASTM class 30 | |
| Internal pump house coating: | CED |
| Shaft: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-2 |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |
| Size of inlet connection: | DN 150 |
| Size of outlet connection: | DN 125 |
| Pressure rating for connection: | PN 16 |
| Grouting (Yes/No): | N |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.57 |
| Net weight: | 128 kg |
| Gross weight: | 138 kg |
| Shipping volume: | 0.383 m³ |
| Language on pump nameplate: | GB |
